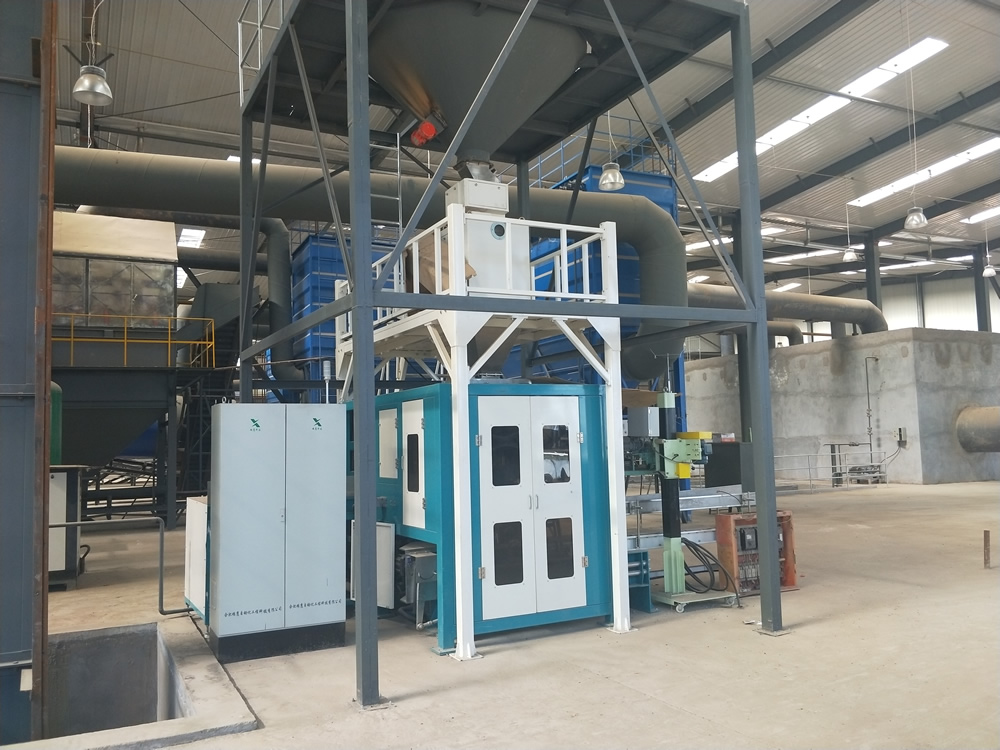

The packaging machine installed for Saudi Arabian customers. Most of Saudi Arabia has a desert climate and water scarcity, which has long constrained agricultural development. With the funds accumulated from the oil economy, Saudi Arabia has promoted modern agricultural technology innovation through large-scale investment, especially by establishing efficient irrigation systems. Organic agriculture is developing rapidly, with 540 organic farms or production units nationwide, covering crops such as dates, olives, grains, vegetables, and fruits. The customer’s new installation of this equipment can increase the market share of organic agricultural fertilizers.

Fertilizer packaging machine is an automated equipment widely used in industries such as agriculture and chemical engineering. It is mainly used for automatic weighing, measuring, and packaging of granular or powdered materials (such as compound fertilizers, organic fertilizers, feed, chemical raw materials, etc.). This type of equipment can significantly improve production efficiency, reduce labor costs, and ensure packaging accuracy and consistency.

Main functions and features:
High degree of automation: supports automatic weighing, filling, bagging, sewing and other processes, and some models can achieve fully automated operations.
Wide applicability: Suitable for various materials such as organic fertilizers, compound fertilizers, biomass pellets, feed, chemical powders, etc.
Measurement precision: Using high-precision sensors and intelligent control systems, the measurement error is usually controlled between ± 0.1% and ± 15 grams, depending on the model and configuration.
Flexible packaging specifications: The common packaging weight range is 5-100kg, supporting various bag types such as woven bags, burlap bags, and self-supporting bags.
Anti corrosion and durable design: Key components such as weighing buckets and bag clamping mechanisms are often made of 304 stainless steel, which has strong corrosion resistance and is suitable for long-term treatment of corrosive materials such as fertilizers.
Intelligent control: equipped with electronic weighing instruments and PLC control system, with functions such as automatic peeling, error correction, out of tolerance alarm, and power-off protection.

Organic fertilizer packaging machine is a specialized equipment used for automatic measurement, filling, and packaging of powdered or granular organic fertilizers. Its core functions include weighing accuracy control (± 0.2% – ± 1%), manual/fully automatic bagging, sealing, and conveying, suitable for 25-50kg large bag packaging.
Core working principle and technical parameters

1. Workflow:
-Manual bagging: The operator places the woven bag onto the bag clamping device.
-Automatic measurement: feeding is carried out through a belt/winch with multi-stage feeding (fast, medium, and slow speed adjustment), and real-time monitoring is carried out by a weighing sensor. After the target weight (such as 25kg) meets the standard, feeding is stopped.
-Filling and sealing: The material falls into the bag and is transported by a conveyor belt to a hot sealing machine or sewing machine for packaging.
2. Key performance parameters:
-Packaging speed: Semi automatic 180-300 packs/hour, fully automatic 300-400 packs/hour.
-Accuracy range: ± 0.2% (high-precision type) to ± 1% (standard type), affected by material fluidity.
-Applicable materials: powder (such as chicken manure), granular (such as compound fertilizer), moisture content ≤ 15%.
-Power consumption and size: power 4-11kW, voltage 380V, occupying approximately 2m x 1.5m (customized).
Buying Guide

1. Key points for purchasing:
-Material compatibility: High humidity fertilizers are made of stainless steel material (corrosion-resistant), and viscous materials require scraping devices.
-Automation requirements:
1. Semi automatic (manual bagging): Low cost (about ¥ 50000-80000), suitable for small factories.
2. Fully automatic (robotic bag loading): ¥ 100000+, saving labor and increasing production capacity by 50%.
