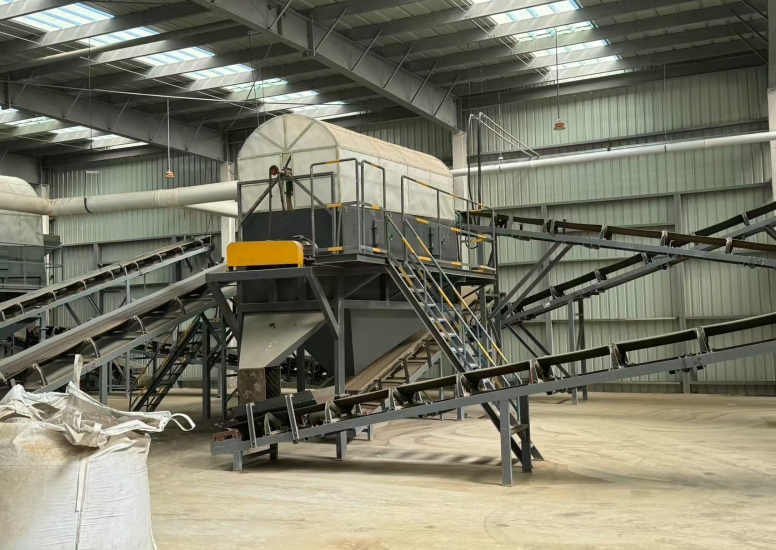

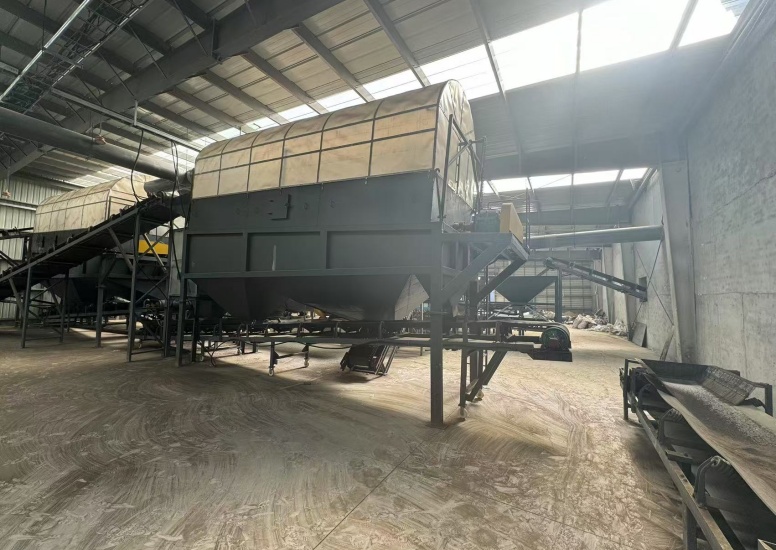

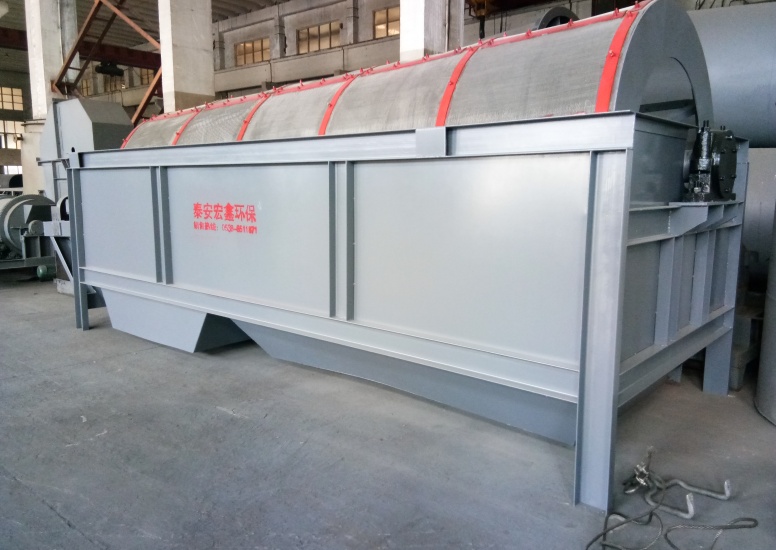

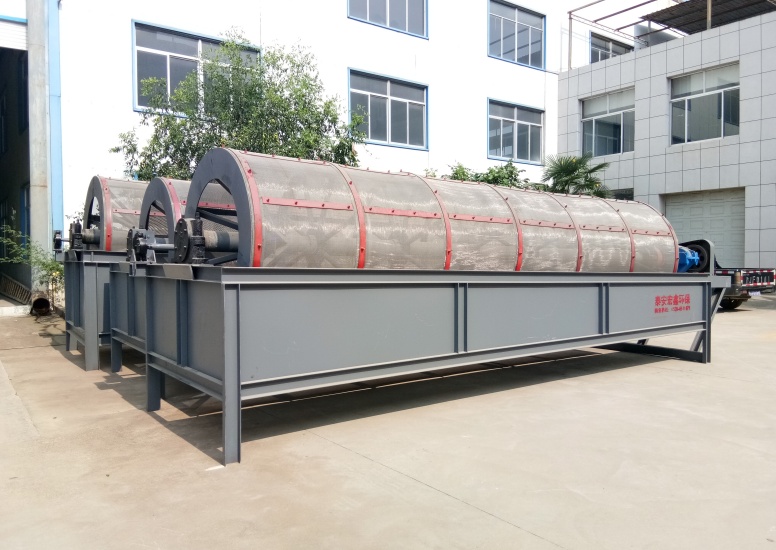

Rotary Compost Screener

The drum screen is a widely used screening equipment for material particle size classification. Its core structure is a rotatable cylindrical screen body, with different-sized screen holes set on the surface of the screen body according to the screening requirements. It mainly consists of a power system, a drum device, a support device, and feeding and discharging ports, etc.

Features of the drum screen:
Screen core diameter: Φ1.0 – 2.4 meters
Screening particle size of fertilizers: 0.5 – 50mm
Production capacity: 3 – 40 tons per hour
High screening efficiency, good working environment, low equipment noise, long service life, convenient maintenance, and wide application range.
Available in various materials, stainless steel is an option.

Applications of the drum screen:
1. Mining industry: It is used for the classification and screening of ores, separating ores of different particle sizes.
Benefit: Facilitates subsequent processing and treatment.
2. Construction materials industry: It can screen sand and gravel materials, such as different-sized stones and sands used in concrete mixing plants.
Benefit: Produces aggregates that meet different construction requirements.
3. Coal industry: It is used for the separation of lump coal and coal powder, as well as the classification and screening during the coal washing process.
Benefit: Improves the quality and utilization rate of coal.
4. Chemical industry: It screens chemical raw materials, achieving the classification of large and small lumps and the separation of powdery substances.
Benefit: Ensures the particle size requirements of materials in the chemical production process.
5. Waste treatment industry: In the treatment of domestic waste, it can separate different types of waste such as recyclables, hazardous waste, and kitchen waste.
Benefit: Improves the efficiency of waste treatment and promotes the recycling of resources.
