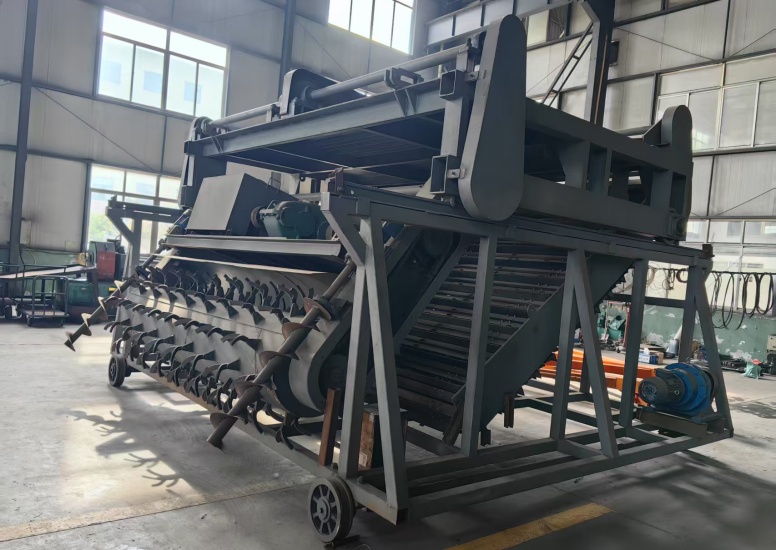

What is a Chain plate compost turner

Core Structure

• Chain Plate Assembly: The core working part, consisting of chains and evenly distributed plates. The plates are usually made of wear-resistant steel to withstand friction from organic materials.
• Transmission System: Includes motors, reducers and chains. It provides power to drive the chain plate assembly to rotate or move linearly.
• Frame and Walking Mechanism: The frame supports the entire equipment. The walking mechanism (such as wheels or crawlers) allows the equipment to move along the compost pile or trough for continuous turning.
• Control System: Simple models use manual control, while advanced ones are equipped with automatic control, which can adjust the turning speed and walking speed according to the composting situation.

Working Principle

1. The equipment moves along the compost pile (or the compost is conveyed to the working area of the equipment).
2. The motor drives the chain plate assembly to run through the transmission system.
3. The rotating or moving chain plates insert into the compost pile, lift, turn and throw the organic materials.
4. During the turning process, the compost pile is loosened, and air is fully mixed into the materials to increase the oxygen content.
5. At the same time, the high-temperature materials inside the pile are turned to the surface, and the low-temperature materials on the surface are turned to the inside, realizing temperature balance and accelerating the decomposition of microorganisms.

Main Advantages

• Good Aeration Effect: The chain plate can deeply insert into the compost pile, and the turning is more thorough, which can effectively increase the oxygen content in the pile and avoid anaerobic fermentation.
• Strong Adaptability: It can handle various organic materials, such as livestock manure, crop straw, sludge, etc. It is also suitable for both strip compost piles and trough composting systems.
• Low Material Loss: The chain plate works smoothly, which will not cause excessive crushing of materials, and reduce the loss of organic matter.
• High Efficiency: It can realize continuous operation, with fast turning speed and large processing capacity, which is suitable for medium and large-scale composting plants.

Application Scenarios

• Livestock and Poultry Breeding Industry: Used for turning and composting livestock manure (such as chicken manure, cow manure, pig manure) to produce organic fertilizer.
• Agricultural Waste Treatment: Used for composting crop straw, vegetable waste, fruit residues and other agricultural wastes.
• Sludge Treatment: Cooperate with other equipment to compost municipal sludge or industrial sludge (after harmless treatment) to realize resource utilization.
• Organic Fertilizer Production Enterprises: As the core equipment in the composting process, it provides qualified decomposed materials for the subsequent production of organic fertilizer.
