What is a Compound Fertilizer Disc Granulation Production Line？

A Compound Fertilizer Disc Granulation Production Line is an integrated industrial system designed to manufacture compound fertilizers—fertilizers containing two or more essential plant nutrients (such as nitrogen, phosphorus, and potassium) in granular form. At its core lies the disc granulator (also known as a pan granulator), which enables the transformation of fine powder raw materials into uniform, spherical fertilizer granules through a wet granulation process. This production line is widely adopted in the fertilizer industry due to its efficiency, cost-effectiveness, and adaptability, meeting the demand for high-quality fertilizers in modern agriculture.

Compound Fertilizer Disc Granulation Production Line Key Components and Workflow

The production line operates through a sequential, automated workflow involving several critical stages:

1. Raw Material Preparation and Mixing:
Different raw materials (e.g., urea, ammonium phosphate, potassium chloride, and organic additives) are precisely measured and blended in a mixer to ensure uniform nutrient distribution. This step is vital for the final fertilizer’s quality consistency.
2. Disc Granulation (Pellet Formation):

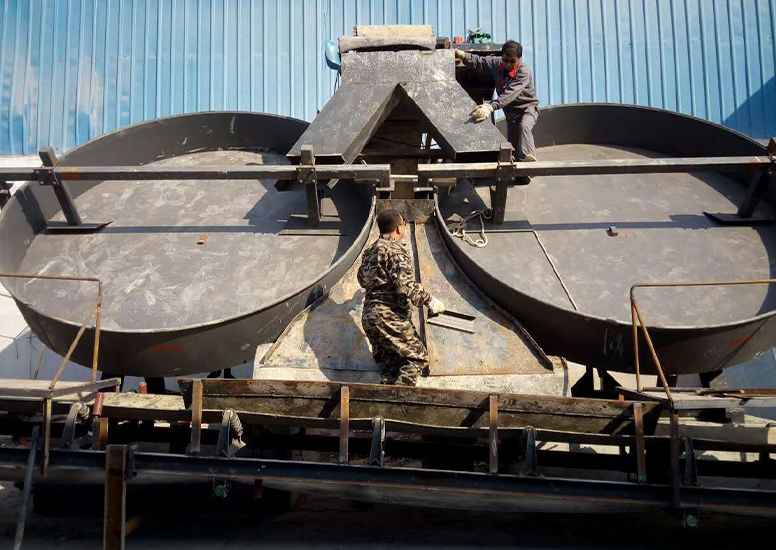

The mixed powder is fed into the disc granulator, a circular, tilted pan that rotates at a controlled speed. Water or steam is sprayed onto the material during rotation, causing the particles to agglomerate into granules. The disc’s tilt angle, rotational speed, and spray rate are adjustable to optimize granule size (typically 2–4 mm) and shape.
3. Drying:
The wet granules, now containing excess moisture, enter a rotary dryer (often heated by hot air) to reduce moisture content to a safe level (usually below 2%) for storage and use. Drying prevents caking and extends shelf life.
4. Cooling:
Hot granules from the dryer are cooled in a rotary cooler to ambient temperature. This step stabilizes the granules, preventing moisture migration and maintaining their structural integrity.
5. Screening:
Granules pass through a vibrating screento separate qualified granules (within the target size range) from oversized or undersized particles. Oversized granules are crushed and recycled back into the granulation stage, while undersized ones are reintroduced into the disc granulator for reprocessing.
6. Optional Coating and Packaging:
Some lines include a coating system to apply additives (e.g., anti-caking agents or slow-release coatings) to the granules. Finally, qualified granules are packaged into bags or bulk containers for distribution.

Compound Fertilizer Disc Granulation Production Line Core Equipment and Technical Features

The disc granulator is the heart of the production line, with key features including:

Adjustable Design: The disc’s tilt angle (usually 45°–60°) and rotational speed (typically 10–30 rpm) can be fine-tuned to suit different materials and granule specifications.
Multi-Outlet Structure: Advanced models feature multiple discharge outlets, improving production efficiency and reducing blockages.
Durable Construction: Built with robust steel frames and corrosion-resistant materials, ensuring long-term operation in harsh environments.
Integrated Spray System: Ensures even moisture distribution for consistent granule formation.

Other essential equipment includes conveyors (belt or bucket elevators) for material transfer, rotary dryers and coolers for thermal processing, and vibrating screens for classification.

Advantages of Disc Granulation

This production method offers several benefits:

High Granulation Efficiency: Achieves granulation rates of up to 90% or higher, minimizing raw material waste.
Excellent Granule Quality: Produces spherical granules with uniform size, smooth surfaces, and high strength, ideal for mechanical application.
Wide Material Adaptability: Compatible with various raw materials, including organic-inorganic blends, making it suitable for producing diverse compound fertilizer formulations.
Cost-Effective: Requires lower initial investment and energy consumption compared to other granulation methods (e.g., drum granulation).
Scalable and Continuous Operation: Supports small-scale to large-scale production, meeting the needs of different-sized fertilizer manufacturers.

Compound Fertilizer Disc Granulation Production Line Applications and Significance

Compound fertilizer disc granulation production lines are used globally to produce fertilizers for crops such as grains, vegetables, and fruits. By enabling the efficient production of nutrient-balanced fertilizers, these lines help improve crop yields, reduce nutrient loss, and support sustainable agriculture. They are particularly valuable in regions where soil nutrient deficiencies are common, contributing to food security and agricultural productivity.

In summary, a compound fertilizer disc granulation production line is a reliable, efficient, and adaptable system that plays a crucial role in modern fertilizer manufacturing. Its ability to produce high-quality granules with consistent nutrient content makes it a preferred choice for fertilizer producers aiming to meet the growing demand for effective and environmentally friendly fertilizers.
