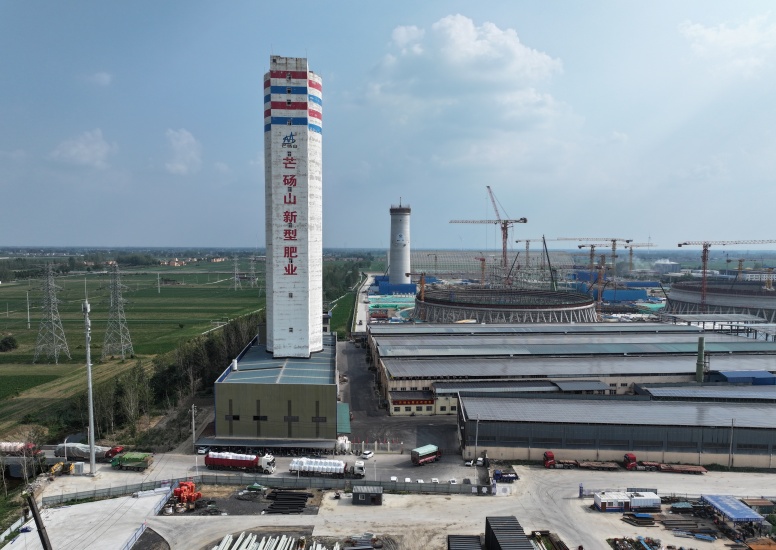

What is a Compound Fertilizer High Tower Granulation Production Line？
2025-11-27 14:27:47
By : root
A Compound Fertilizer High Tower Granulation Production Line is an advanced industrial system designed to produce granular compound fertilizers—fertilizers containing two or more essential nutrients (e.g., nitrogen, phosphorus, and potassium) in a single, homogeneous granule. This production method is named for its signature high tower structure, which enables efficient granulation through free-falling materials and natural cooling. It’s widely adopted in the fertilizer industry for its high output, uniform product quality, and energy efficiency. Below is a detailed breakdown of its working principle, key components, advantages, and applications.
Compound Fertilizer High Tower Granulation Production Line Working Principle
The core principle of this production line relies on free-fall granulation and natural cooling:
Raw Material Preparation: Raw materials (e.g., urea, ammonium phosphate, potassium chloride) are precisely blended according to the target nutrient ratio.
Melting and Mixing: The mixture is heated in a dissolver to form a molten slurry, ensuring thorough homogeneity.
Tower Granulation: The molten slurry is pumped to the top of a high tower (typically 50–80 meters tall) and sprayed downward through nozzles. As the droplets fall, they solidify into spherical granules due to natural cooling from the surrounding air.
Cooling and Screening: After granulation, the hot granules fall into a cooling chamber at the tower’s base, where they are cooled to room temperature. They then pass through a vibrating screen to separate qualified granules from oversized or undersized ones (recycled back into the system).
Coating and Packaging: Qualified granules may be coated with anti-caking agents to improve storage stability, then packaged for distribution.
Compound Fertilizer High Tower Granulation Production Line Key Components
Dissolver and Melting System: Heats and mixes raw materials into a uniform molten slurry.
High Tower Structure: The central tower enables free-fall granulation and natural cooling—its height ensures sufficient cooling time for granule formation.
Spray Nozzles: Located at the tower’s top, these control droplet size to determine granule diameter (usually 2–4 mm).
Cooling and Screening Equipment: Cools granules and separates them by size.
Recycling System: Collects and reprocesses unqualified granules to minimize waste.
Coating and Packaging Units: Adds surface treatment and prepares the final product for shipment.
Compound Fertilizer High Tower Granulation Production Line Advantages
High Efficiency: Continuous production with a large output capacity (e.g., 100–500 tons/hour), ideal for large-scale fertilizer manufacturing.
Uniform Nutrient Distribution: The molten slurry ensures each granule contains a consistent nutrient ratio, improving fertilizer efficacy.
Energy Saving: Natural cooling reduces the need for mechanical cooling equipment, lowering energy consumption.
High-Quality Granules: Produces spherical granules with smooth surfaces, good fluidity, and low moisture content (usually <2%), making them easy to store and apply.
Low Environmental Impact: Closed-loop systems minimize dust and gas emissions, meeting environmental standards.
Compound Fertilizer High Tower Granulation Production Line Applications
This production line is suitable for manufacturing various compound fertilizers, such as:
NPK fertilizers (e.g., 15-15-15, 20-10-10).
Specialty fertilizers (e.g., fertilizers with added trace elements like zinc or boron).
Customized fertilizers tailored to specific crops (e.g., high-potassium formulas for fruit trees).
Compound Fertilizer High Tower Granulation Production Line Considerations for Operation
Raw Material Purity: Impurities in raw materials may clog nozzles or affect granule quality—strict quality control is essential.
Tower Height and Temperature Control: The tower’s height must match the required cooling time, and temperature must be precisely managed to ensure complete solidification.
Dust Management: Although emissions are low, dust collection systems are still necessary to meet environmental regulations.
Maintenance: Regular checks on nozzles, pumps, and screening equipment are needed to ensure stable operation.
