What is a Compound Fertilizer Spray Granulation Production Line？
2025-11-25 13:47:18
By : root
A compound fertilizer spray granulation production line is an industrial system designed to manufacture granulated compound fertilizers—fertilizers containing two or more essential plant nutrients (such as nitrogen, phosphorus, and potassium) in a single, uniform granule. This production line uses spray granulation technology, a process where liquid or slurry materials are sprayed into a granulator to form spherical granules through controlled conditions. It is widely used in modern agriculture for its ability to produce high-quality, efficient, and customizable fertilizers. Below is a detailed breakdown of its components, working principles, advantages, and applications.

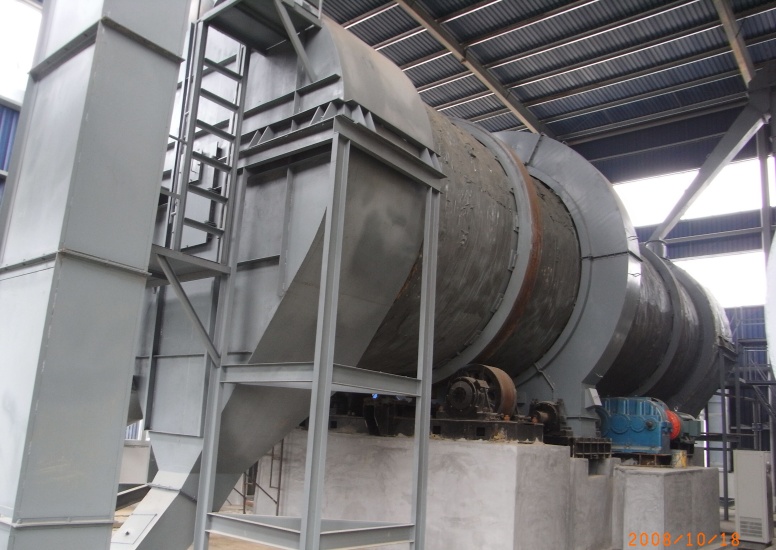

Compound Fertilizer Spray Granulation Production Line Key Components of the Production Line
The line integrates multiple units to ensure a seamless transformation from raw materials to finished granules:
Raw Material Dosing and Mixing System
Function: Accurately measures and mixes raw materials (e.g., urea, ammonium phosphate, potassium chloride, fillers) based on a formulated ratio.
Key Equipment: Dosing hoppers, mixers (e.g., paddle mixers or double-shaft mixers).
Importance: Ensures uniform nutrient distribution in the final product.
Function: Converts mixed dry materials into a liquid or slurry form (if needed) by adding water or other solvents. This slurry is essential for the spray granulation process.
Key Equipment: Dissolution tanks, agitators, and pumps.
Note: The slurry’s viscosity and nutrient concentration are strictly controlled to optimize granulation.
Core Component: The heart of the production line.
Working Principle: The slurry is sprayed into the granulator via nozzles, where it contacts a seed bed (small granules or powder) in a fluidized or rotating bed. Under controlled temperature, humidity, and airflow, the slurry coats the seed bed, forming larger granules.
Types: Common granulators include fluidized bed granulators or rotary drum granulators with spray nozzles.
Key Features: Adjustable spray rate, airflow, and temperature for precise granule size control.
Drying and Cooling System
Drying Unit: Removes excess moisture from the wet granules using hot air (e.g., hot blast stoves or rotary dryers).
Cooling Unit: Cools the dried granules to room temperature to prevent caking or deformation.
Importance: Ensures granules have the right moisture content (typically 1-2%) for storage and handling.
Screening and Recycling System
Function: Screens granules into different sizes using vibrating screens.
Recycling: Oversized or undersized granules are crushed and returned to the granulator for reprocessing, reducing waste.
Key Equipment: Vibrating screens, crushers.
Coating and Packaging System
Coating Unit: Applies a thin layer (e.g., anti-caking agents) to the granules to improve storage stability and handling.
Packaging Unit: Weighs and packages the final granules into bags or bulk containers.
Automation: Modern lines use automatic packaging machines for efficiency.
Dust Collection and Environmental Control System
Function: Captures dust and emissions generated during production to meet environmental standards.
Key Equipment: Cyclone separators, bag filters, or electrostatic precipitators.
Compound Fertilizer Spray Granulation Production Line Working Principle
The production line operates in a continuous, closed-loop process:
Raw materials are dosed, mixed, and converted into a slurry (if required).
The slurry is sprayed into the granulator, where it forms granules via fluidized or rotary granulation.
Wet granules are dried, cooled, and screened.
Qualified granules are coated, while oversized/undersized granules are recycled.
Final granules are packaged after quality checks.
Advantages of Spray Granulation Production Lines
Produces spherical granules with uniform size, high strength, and smooth surfaces—ideal for mechanical application and slow nutrient release.
Can customize formulations (e.g., NPK ratios) to meet specific crop or soil needs.
Efficiency and Automation
High production capacity (e.g., 1-50 tons/hour) with automated control, reducing manual labor.
Environmental Friendliness
Closed-loop design minimizes dust and emissions, with recycling systems reducing raw material waste.
Low energy consumption per ton of fertilizer, with high raw material utilization rates.
Compound Fertilizer Spray Granulation Production Line Applications
Agricultural Fertilizers: Produces NPK fertilizers, compound fertilizers with micro-nutrients (e.g., zinc, boron), and specialty fertilizers for crops like wheat, corn, rice, and vegetables.
Customized Fertilizers: Adapts to regional soil and crop requirements (e.g., high-potassium fertilizers for potatoes).
Industrial Use: Suitable for large-scale fertilizer manufacturers and agricultural cooperatives.
Compound Fertilizer Spray Granulation Production Line Considerations for Operation
Raw Material Quality: Requires consistent nutrient content and particle size of raw materials.
Process Control: Precise control of spray rate, temperature, and airflow is critical for granule quality.
Maintenance: Regular checks on nozzles, dryers, and screens ensure stable operation.
Environmental Compliance: Must meet local emissions and waste management regulations.
