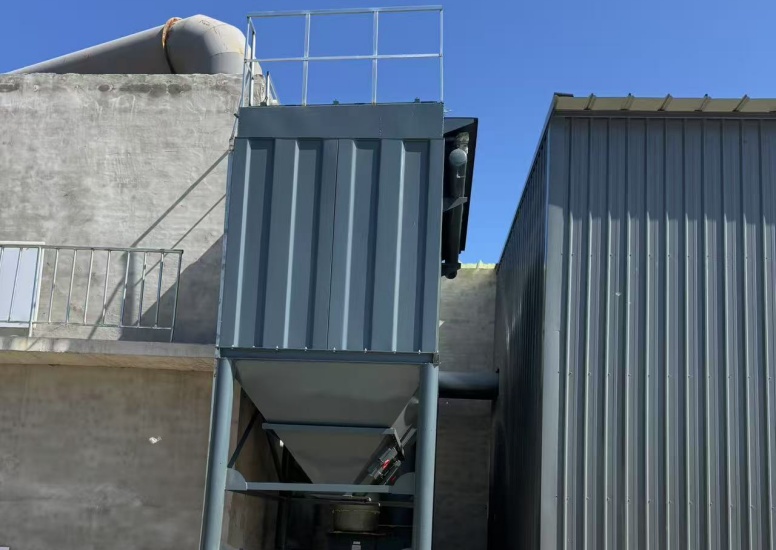

What is a Dust Collector?
2025-10-17 11:58:53
By : root
A
dust collector is an
industrial and environmental protection device designed to capture, separate, and remove particulate matter (dust, powder, or tiny solid particles) from gas streams (such as air or exhaust gas). Its core function is to reduce dust emissions, improve air quality in workplaces, prevent environmental pollution, and sometimes recover valuable dust (e.g., fertilizer powder, metal dust) for reuse, making it a key piece of equipment in industries like manufacturing, energy, and agriculture.
Dust generated during industrial production (e.g., from fertilizer drying, metal cutting, or coal combustion) can cause air pollution, equipment wear, and health risks. A dust collector addresses these issues through three key functions:
- Air Purification
It captures floating dust in gas streams (e.g., dust from fertilizer dryers or cement mixers) and filters out particulate matter, ensuring the discharged gas meets national emission standards (e.g., China’s “Emission Standard of Air Pollutants for Industrial Furnaces and Boilers” requires dust concentration ≤ 30mg/m³).
- Workplace Health Protection
By reducing dust in the air, it prevents workers from inhaling harmful particles, which can cause respiratory diseases (e.g., silicosis from stone dust) or allergic reactions, complying with occupational health regulations.
- Dust Recovery & Resource Saving
For valuable dust (e.g., fertilizer powder in organic fertilizer production, metal powder in machining), the collector separates and collects the dust, allowing it to be reused in production. This reduces raw material waste and lowers production costs.
Regardless of the type, a dust collector follows a basic “dust capture → transport → separation → discharge” process, with differences in separation methods (mechanical, filter-based, or electrostatic). The general workflow is:
- Dust Capture
A suction hood or duct is installed at the dust source (e.g., the outlet of a fertilizer dryer). Negative pressure generated by a fan draws the dust-laden gas into the collector’s duct system.
- Gas Transport
The duct system delivers the dust-laden gas to the dust collector’s main body, with baffles or flow guides inside the ducts to avoid dust accumulation and ensure uniform gas distribution.
- Dust Separation
This is the core step, using different technologies to separate dust from gas:
- Mechanical separation (e.g., cyclone dust collectors): Centrifugal force from rotating gas throws heavy dust particles to the inner wall of the cyclone, where they fall into a collection hopper due to gravity.
- Filter-based separation (e.g., baghouse dust collectors): Gas passes through a filter medium (e.g., fabric bags or filter cartridges). Dust is trapped on the filter surface, while clean gas passes through and is discharged.
- Electrostatic separation (e.g., electrostatic precipitators): High-voltage electricity ionizes the gas, charging dust particles. The charged particles are attracted to oppositely charged electrodes, then fall into a hopper after being knocked off.
- Dust Discharge & Clean Gas Emission
Collected dust is discharged from the hopper (usually via a rotary valve or screw conveyor) for disposal or reuse. The purified gas is discharged into the atmosphere through a fan and chimney.
Different dust collectors are suitable for varying dust properties (particle size, concentration, humidity) and application scenarios. The four most widely used types are:
When choosing a dust collector, three core factors must be considered to ensure it matches production needs:
- Dust Properties
- Particle size: Fine dust (≤5μm) requires baghouse or cartridge collectors; coarse dust (≥5μm) can use cyclone collectors.
- Humidity: High-humidity dust (e.g., wet fertilizer dust) should avoid baghouse collectors (to prevent filter clogging); electrostatic precipitators or corrosion-resistant cyclones are preferred.
- Air Volume & Emission Requirements
- Large air volume (e.g., 100,000 m³/h in power plants) requires electrostatic precipitators; small air volume (e.g., 5,000 m³/h in small workshops) is suitable for cartridge collectors.
- Strict emission standards (e.g., dust concentration ≤10mg/m³) require baghouse or electrostatic precipitators; general standards can use cyclone collectors.
- Working Environment
- High-temperature gas (e.g., boiler flue gas at 300℃) needs high-temperature-resistant electrostatic precipitators or ceramic filter bag collectors; normal-temperature environments (e.g., fertilizer workshops) can use ordinary baghouse or cartridge collectors.
