What is a Fertilizer Dryer?

What is a Fertilizer Dryer?

I. Core Functions of a Fertilizer Dryer

1. Meeting Storage Requirements: High-moisture fertilizers are prone to mold, decay (e.g., deterioration of organic matter in organic fertilizers), or freezing in low-temperature environments. Dryers can reduce moisture to 10%-15% (varies by fertilizer type), extending the storage period.
2. Preventing Caking and Deterioration: Excessive moisture causes fertilizer granules to stick and cake, affecting uniform spreading during use. It also accelerates the decomposition of nutrients in fertilizers (e.g., nitrogen loss). Dryers maintain the looseness of fertilizer granules and the stability of nutrients.
3. Adapting to Subsequent Processes: Dried fertilizer granules have more uniform hardness and particle size, enabling smooth entry into subsequent processes such as cooling, screening, and packaging, and avoiding production line blockages caused by moisture.
4. Complying with National Standards: China has clear regulations on the moisture content of commercial fertilizers (e.g., Organic Fertilizers (GB/T 525-2021) requires moisture ≤ 30%, and in actual production, drying to a lower level is necessary to meet the standard). Dryers are essential equipment for compliant production.

II. Working Principle of a Fertilizer Dryer

1. Heat Source Input: The equipment is equipped with a dedicated heat source (e.g., coal-fired hot air furnace, gas-fired hot air furnace, electric heating tube, waste heat recovery device) to generate clean hot air (temperature usually ranges from 80-300°C, adjusted according to fertilizer type to avoid nutrient damage due to high temperatures).

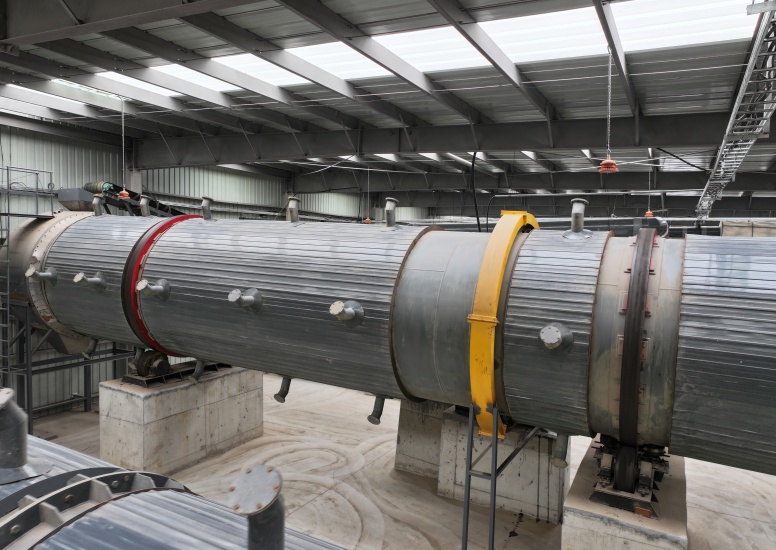

2. Contact Between Material and Hot Air: The fertilizer to be dried (e.g., wet granules, wet powder) enters the “drying cylinder” (core component) of the dryer via a conveyor belt. Inside the cylinder, it fully contacts the hot air in a “co-current” or “counter-current” manner:
   • Co-current: Hot air flows in the same direction as the material. Suitable for fertilizers with high initial moisture and high temperature resistance (e.g., inorganic compound fertilizers).
   • Counter-current: Hot air flows in the opposite direction to the material. It has a more uniform temperature gradient and is suitable for heat-sensitive fertilizers (e.g., organic fertilizers, bio-fertilizers) to prevent the inactivation of live bacteria.
3. Moisture Evaporation and Separation: Hot air transfers heat to the fertilizer, causing free water and bound water in the material to evaporate and form “wet air”. Meanwhile, the lifting plates (rotating components) inside the drying cylinder continuously turn the material to ensure each fertilizer granule contacts the hot air, avoiding uneven local drying.
4. Exhaust Gas Treatment and Moisture Discharge: The wet air containing moisture is discharged from the tail of the dryer and enters exhaust gas treatment devices such as cyclone separators and bag filters to separate fertilizer dust carried in the air (for recycling and reuse). Finally, the clean wet air is discharged through an induced draft fan, completing the drying cycle.

III. Different Types of Fertilizer Dryers

IV. Key Technical Parameters of Fertilizer Dryers

1. Processing Capacity: The amount of fertilizer that can be dried per unit time (e.g., “5t/h”). It should be determined based on the total output of the production line to avoid insufficient capacity or waste.
2. Inlet/Outlet Moisture: Based on the initial moisture of the raw material (e.g., 60%-70% moisture for fermented organic fertilizers) and the target moisture (e.g., 12%), the “moisture evaporation capacity” of the dryer is determined.
3. Hot Air Temperature: Inorganic fertilizers (e.g., compound fertilizers) can withstand high temperatures of 200-300°C, while organic/bio-fertilizers need to be controlled at 80-120°C (to avoid carbonization of organic matter and inactivation of live bacteria).
4. Energy Consumption Index: Usually measured by “energy consumption per ton of fertilizer dried” (e.g., coal consumption, electricity consumption), which directly affects production costs. Priority should be given to waste heat recovery equipment to reduce energy consumption.
5. Material: The inner wall of the drying cylinder should be made of corrosion-resistant materials (e.g., 304 stainless steel), especially when processing acidic or alkaline fertilizers (e.g., potassium sulfate-type compound fertilizers) to prevent equipment rusting.

V. Application Scenarios of Fertilizer Dryers

• Organic Fertilizer Plants: Process raw materials such as fermented livestock manure, straw, and food waste. After drying, the materials are granulated or directly made into powdered organic fertilizers.
• Compound Fertilizer Plants: Dry compound fertilizer granules after wet granulation (e.g., urea-based compound fertilizers, nitro-compound fertilizers) to avoid granule sticking.
• Bio-fertilizer Plants: Use low-temperature mesh belt dryers or disk dryers to protect the activity of beneficial bacteria during the drying process.
• Special Fertilizer Plants: For fertilizers such as humic acid fertilizers and amino acid fertilizers, drum scraper dryers are used to process paste raw materials.
