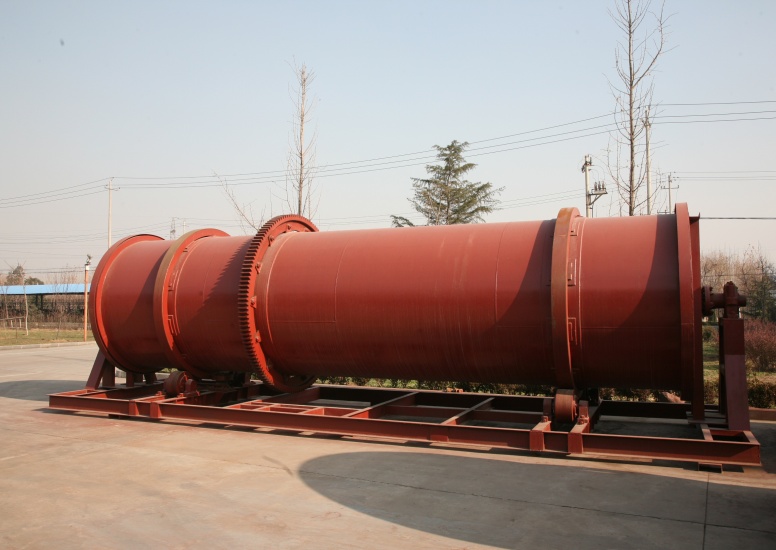

What is a Rotary Drum Granulator?
2025-10-13 12:30:33
By : root
A
rotary drum granulator is a molding machine capable of manufacturing materials into specific shapes. As one of the key pieces of equipment in the compound fertilizer industry, it is suitable for large-scale production of compound fertilizers through both cold and hot granulation processes, and for fertilizers with high, medium, and low concentrations.
Based on the agglomeration wet granulation technology, materials are fed into the rotary drum granulator from the feed end. They are moistened with a certain amount of water or steam, and chemical reactions may occur during this process. Driven by the drive system, the drum rotates, causing the materials to roll inside the drum. Pressure is generated between the particles, which then agglomerate into spherical shapes. The finished granules are discharged from the discharge port.
The drum is usually lined with special rubber sheets or acid-resistant stainless steel liners, enabling automatic scar removal and tumor elimination. This design eliminates the traditional scraper device and features corrosion resistance, wear resistance, and other advantages.
- Strong adaptability: It can process a variety of raw materials, such as livestock and poultry manure, straw, and food waste.
- High-quality granules: The produced granules have good sphericity and uniform particle size.
- Easy operation and maintenance: It is relatively simple to operate, easy to adjust and maintain, with a compact equipment structure and low cost.
- Large production capacity: Different production scales can be customized according to the needs of enterprises.
- Good environmental performance: It meets national environmental protection requirements.
Rotary drum granulators of different specifications vary in terms of inner diameter, drum length, rotation speed, production capacity, and other parameters. For example, the rotary drum granulator of model Ф1.4×4 has an inner diameter of 1400mm, a drum length of 4000mm, a rotation speed of 15.05r/min, a production capacity of 6t/h, and a motor power of 11kw.
