what is a Cage crusher?

what is a Cage crusher?

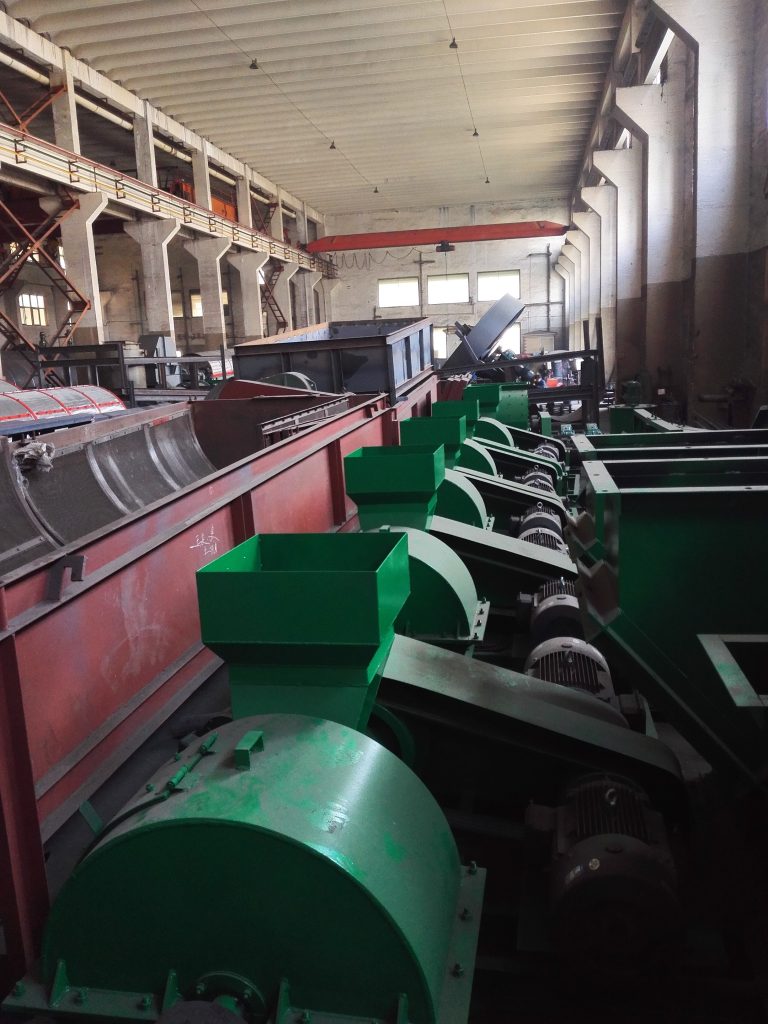

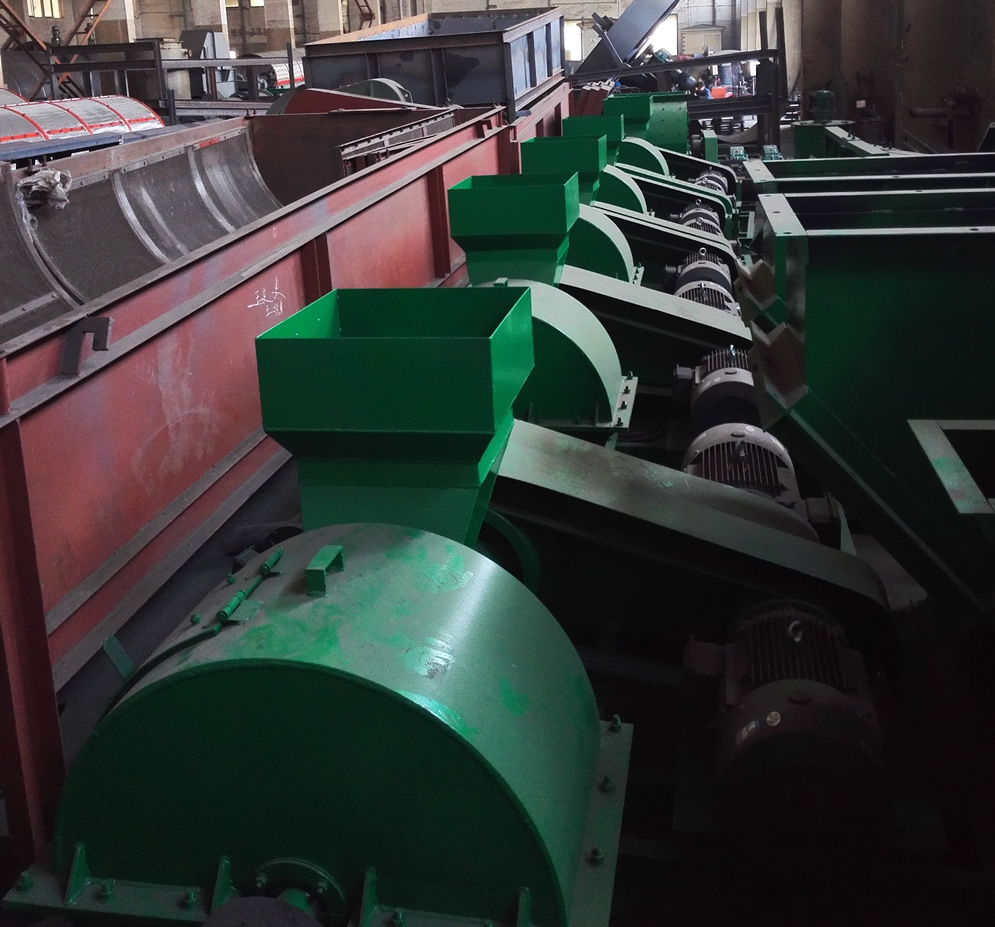

Cage crusher: a horizontal double rotor impact fine crushing equipment commonly used in fertilizer production lines, specifically designed to break up clumps of fertilizers and organic fertilizers.

Working Principle

Two sets of concentric circular cage discs (inner cage, outer cage) are driven by two motors to rotate at high speed in reverse, and wear-resistant alloy steel cage bars are fixed on the cage discs.
The material enters the center from the feeding port, and is thrown outward by centrifugal force. It is repeatedly hit, sheared, and collided by the cage bars moving in opposite directions, and gradually crushed from the inside out. Qualified fine materials are discharged from the bottom; **No sieve structure * *, controlled by the gap between the cage bars to control particle size, less likely to clog the machine.

structural composition

Rack, sealed casing, inner cage rotor, outer cage rotor, dual motor+belt drive, feeding hopper, bottom discharge port;
Cage bars are core vulnerable parts, commonly made of high manganese steel/high chromium alloy. They can be replaced separately after wear and are easy to disassemble and maintain.

Applicable Materials

1. Fertilizer: Lumped urea, monoammonium, diammonium, potassium chloride, potassium sulfate, industrial salt crystalline blocks (brittle lump materials)
2. Organic fertilizer: fermented and decomposed organic fertilizer clumps, humic acid, bacterial residue, and distiller’s grains (with a maximum water content of about 40%)
3. Other: brittle minerals with medium to low hardness, some chemical crystalline materials

Not suitable for: large hard stones, materials with high fiber content, high viscosity mud materials

Core advantages

-No bottom screen, wet material does not block the machine, superior to hammer crusher
-The discharge particle size is uniform, adjustable from 20 to 120 mesh, with less over crushing, which is beneficial for subsequent disc granulation/drum granulation
-Compact structure, small footprint, good sealing, controllable dust
-Dual function of dispersing and mild mixing
-Easy maintenance and cleaning, the cage bars can be replaced separately without the need to disassemble the entire unit

Comparison with other organic fertilizer crushers

-Cage crusher: specializes in breaking up clumps of fertilizer and semi wet organic fertilizer, evenly distributing fine powder without clogging the sieve; Not good at growing fibers
-Chain crusher: suitable for high humidity, long fiber manure organic fertilizer, with coarse fineness
-Hammer crusher: particle size is controlled by a sieve, and wet materials are prone to clogging the sieve
