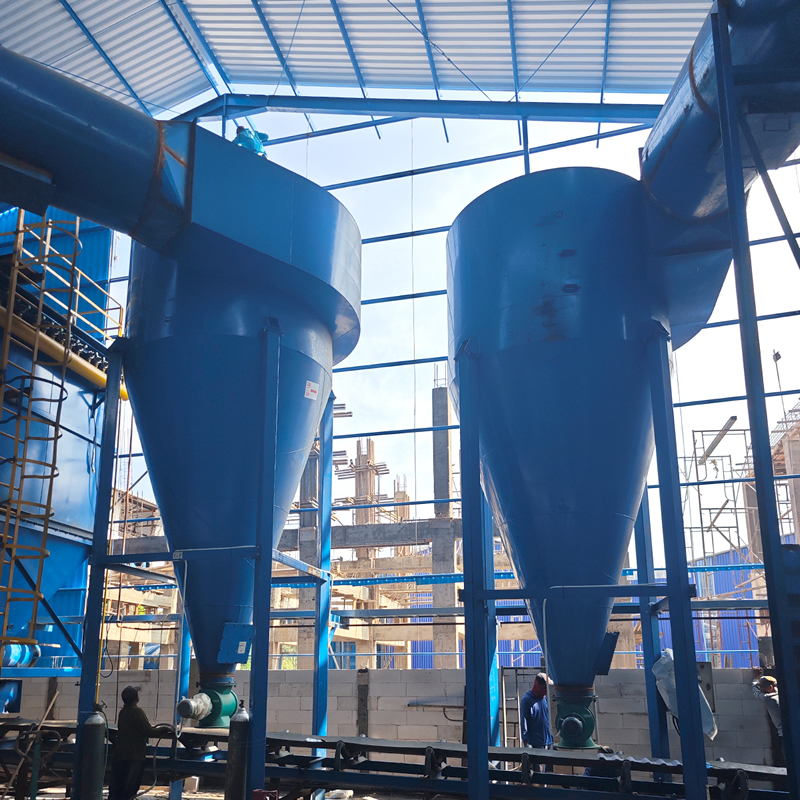

What is Cyclone dust collector

The cyclone dust collector is a dry-type gas-solid separation device that separates dust particles from the dusty gas flow by utilizing centrifugal force. Its core working principle is as follows: The dusty gas flow enters the cylindrical container tangentially from the cyclone, forming a high-speed rotating vortex inside the cylinder. Due to the difference in mass between dust particles and gas, under the action of centrifugal force, the dust particles are thrown towards the cylinder wall and fall along the wall under the influence of gravity, eventually entering the ash hopper at the bottom for collection; while the purified gas is discharged from the exhaust pipe at the center of the cylinder, achieving gas-solid separation. This equipment mainly consists of an inlet pipe, a cylindrical container, a conical part, an exhaust pipe, and an ash hopper.

How does Cyclone dust collector work

A cyclone dust collector works by using centrifugal force to separate dust particles from dirty air, without filters or moving parts. Here’s its working principle in simple steps:
Dust-laden air enters tangentially
Dirty gas is blown into the upper part of the cyclone at an angle (tangentially), creating a fast spinning vortex inside the cylinder.
Centrifugal force throws dust outward
As air spins rapidly, heavier dust particles are pushed toward the outer wall by strong centrifugal force, separating them from the clean air.
Dust slides down into the hopper
Dust hits the wall, loses speed, and slides down the conical bottom into a dust hopper for collection or disposal.
Clean air spirals upward and exits
The now-cleaner air reverses direction at the bottom, forms an inner upward spiral, and exits through the central outlet pipe at the top.

Advantages of Cyclone dust collector

Simple structure and low cost
Without consumables such as moving parts and filter bags, the manufacturing, installation, and initial investment are relatively low.
Easy maintenance and reliable operation
There are almost no vulnerable parts, it is not easy to malfunction, and the daily maintenance workload is small.
High temperature resistance and wear resistance
It can handle high-temperature flue gas, suitable for high-temperature working conditions such as boilers and kilns, and can also adapt to gases containing abrasive dust.
compact footprint
The device is compact in size, flexible in installation, and can be used alone or in combination with multiple units.
Handling large air volume and wide concentration range
Strong adaptability to high concentration dust, often used as pre-treatment dust removal equipment.
Dry separation, no secondary water pollution
The entire process of dry dust removal does not require water and does not produce sewage, making it easy to recycle and reuse dust.
Moderate pressure loss and controllable energy consumption
Compared to devices such as Venturi and cloth bags, the energy consumption is within a reasonable range and the operating cost is lower.

Application of Cyclone dust collector

Cyclone dust collectors are widely used in industrial production for gas‑solid separation, dust removal, and material recovery, especially for separating coarse and medium‑sized particles.
Main applications include:
Boiler flue gas treatment
Used as primary dust removal for industrial boilers and kilns to reduce dust load for subsequent purification equipment.
Cement, building materials, and mining industry
Removes dust from crushers, mills, conveyors, and screening equipment.
Metallurgical industry
Dust removal in blast furnaces, smelting furnaces, and casting workshops.
Wood processing and furniture factories
Collects wood chips, sawdust, and grinding dust.
Chemical industry
Recycles powdered materials and removes dust from reactors and dryers.
Food and grain processing
Separates grain powder, flour, starch, and other particles.
Pretreatment for high‑efficiency dust collectors
Used before bag filters or electrostatic precipitators to reduce dust concentration and protect downstream equipment.
